Getting Started¶

Prerequisites¶

Python~=3.8

Recommended to install via Anaconda or Miniconda

Python 3.8 is required for the Spinnaker library.

Pathfinder MPM Software version 2.8.0 or later

Spinnaker SDK

PySpin (for Linux or Mac OS users)

Installing and Upgrading¶

1. Create a virtual environment using Python 3.8 and activate it:
On Windows:
python -m venv venv
./venv/Scripts/activate
On Linux/Mac:
python -m venv venv
source venv/bin/activate
2. Install the latest version:
pip install parallax-app
To upgrade to the latest version:
pip install parallax-app --upgrade
3. To install the camera interface:
pip install parallax-app[camera]

Running Parallax¶

Run the Pathfinder MPM Software application to connect to the manipulator:
- Run Pathfinder MPM Software (v2.8.0 or later) in administrator mode.
- Enable the HTTP server.
  - Version 2.8.0 of the Pathfinder MPM software includes an HTTP listener that can send probe information to a client program.

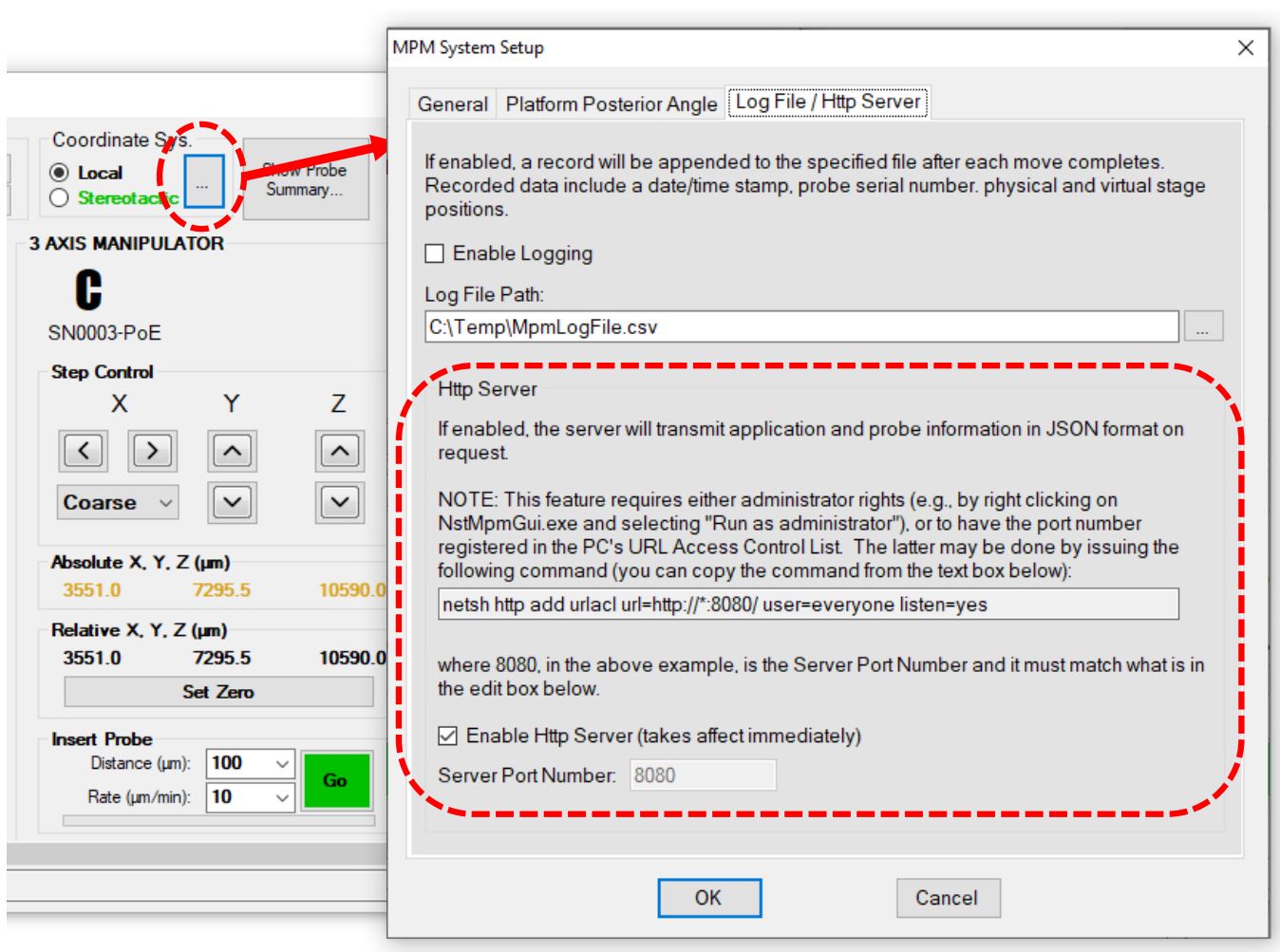

  - Enable the HTTP server in the “MPM System Setup” dialog.
  - Click the “Enable HTTP Server” checkbox to turn on the service.
Run the Parallax application:
```
python -m parallax
```

Other Things to Note¶

Development Mode

Clone the repository:

git clone https://github.com/AllenNeuralDynamics/parallax.git

Install dependencies:
```
pip install -e .[dev]
```

Documentation

Install dependencies:
pip install -e .[docs]
Create the documentation HTML files:
sphinx-build -b html docs/source docs/_build
